Arduino Pro Mini

Description:

Best board for low power projects, which needs to fit into a small space.

This board comes with Arduino bootloader already flashed, you just need to
hook it to a usb to serial converter and start downloading your code.

This board is based on the opensource Arduino spec, uses ATmega328P at its core. This is a Arduino clone which is perfectly compatible with the Arduino IDE and examples provided in it.

Arduino compatible technical specs:


  • 20 digital input/output port RX and TX, D2 ~ D13, A0 ~ A5
  • 8 analog input port A0 ~ A7
  • 1 to the TTL level a serial port to send and receive port RX/TX
  • 6  PWM port, D3, D5, D6, D9, D10, D11
  • Using Atmel Atmega328P - AU microcontroller
  • Support serial download
  • Support external 5 V ~ 12 V dc power supply
  • Support the 12 v and the following batteries
  • 16 MHZ/8MHZ clock frequency
  • Size: 33.3 * 18 (mm)

Programming Arduino Pro mini:

One of the common issues faced when programming Arduino Pro mini is that the dowload fails. The reason for the same is Pro Mini needs to be reset before downloading the code.

The best way to do it is to press the reset button on the Arduino Pro mini 1-2 secs before you press download from the Arduino IDE, this should fix the problem for good.

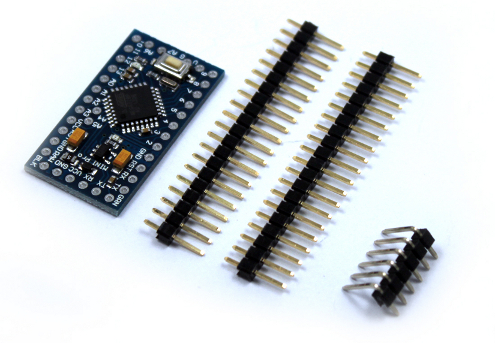

Image:

Catalog:

Price: $12.99
